AWS Certified Developer Associate

• https://www.udemy.com/course/aws-certified-developer-associate-dva-c01/
• https://stephanemaarek.com/
• https://aws.amazon.com/de/certification/certification-prep/
• Slides & Code: https://drive.google.com/open?id=17XcwcDiU_Twynr3zq0iR_Sp6zA7TjEcf

Regions

Regions - Availability Zone ~data center https://aws.amazon.com/de/about-aws/global-infrastructure/

IAM

• user - group - role (machine)
• SAML Standard (Active directory) https://de.wikipedia.org/wiki/Security_Assertion_Markup_Language
• Security Group: Region Scoped

EC2

• SSH Connect to EC2 Instance

    ssh -i ~/config/aws/TimsEC2InstanceKeys.pem ec2-user@3.122.55.45


  => Connect => SSH Client

• Security Group <=> Firewall
• Elastic IP: Fixed IP for EC2 instances
• On Demand: Elastic workload

• Dedicated Host vs Dedicated Instance?

• ENI: Elastic Network Interface

  https://aws.amazon.com/blogs/aws/new-elastic-network-interfaces-in-the-virtual-private-cloud/

• EC2 Pricing https://aws.amazon.com/ec2/pricing/on-demand/
• EC2 Instances: https://ec2instances.info/
• AMI: Amazon Machine Image

• User Data (provisioning script) example:

    #!/bin/bash

    yum update -y
    yum install -y httpd.x86_64
    systemctl start httpd.service
    systemctl enable httpd.service
    echo "Hello World from $(hostname -f)" > /var/www/html/index.html


• EBS Elastic Block Store
  • Easy backup

  • Linux Befehle:

      lsblk


  • https://docs.aws.amazon.com/AWSEC2/latest/UserGuide/ebs-using-volumes.html

  • GP2 Volume
    • General Purpose
    • 1Gb - 16 TB
    • Burst to 3000 (for small)
    • IOPS depend on Volume (3 IOPS per GB, max 16000)
  • IO1
    • high IOPS requirement, e.g. DB
    • 4 GB - 16 TB
    • PIOPS: 100 - 32k (64k for nitro)
    • Max PIOPS : GB => 50:1
  • ST1
    • Streaming Workloads, fast throughput, low price
    • DWH, Kafka etc
    • 40MB/s per TB, Max 500MB/s
  • SC1
    • throught oriented, less frequently accessed
    • cheaper than ST1
    • 12MB/s per TB, Max 250MB/s
• Local EC2 Instance Store
  • physical disk attached to machine
  • high IOPS

EFS

• Elastic File System
• Manages NFS, multi-AZ
• HA, Scalable, Expensive, Pay Per Use
• Linux only
• Performance Mode
  • GP (low latency)
  • Max I/O
• Tiers
  • Standard
  • EFS-IA: infrequent access, lower price but restore fee
• https://docs.aws.amazon.com/efs/latest/ug/mounting-fs.html

RDS

• Relational Database Service
  • Postgres
  • MaySQL
  • MariaDB
  • Oracle
  • Microsoft SQL Developer
  • Aurora
• Backups:
  • Daily
  • Transaction logs @ 5 min
  • up to 35 days
• Manual Snapshots

Read Replicas & Multi AZ

• Read Replicas
  • up to 5
  • within AZ, Cross AZ, Cross Region
  • ASYNC, eventually consistent
  • desired instances in connection String
  • can be promoted to own DB
  • Network cost: data exchange between AZs
  • Can be setup to multi AZ for desaster recovery
• Multi AZ
  • SYNC replication
  • One DNS + failover
• Encryption
  • at rest encryption
    • master must be encrypted for read replica encryption
  • in-flight encryption (SSL)
    • Postgres: parameter group: rds.force_ssl=1
    • MySQL: Within the DB: GRANT USAGE ON . TO ‘mysqluser’@’%’ REQUIRE SSL;
  • encrypt unencrypted DB
    • create Snapshot
    • copy & encrypt snapshot
    • restore to new encrypted DB from encrypted snapshot
  • Postgres does not provide TDE
• Access Management: Login:
  • usname / password
  • IAM for MySQL, Postgres Aurora

Aurora

• performance boost: 5x MySql, 3x Postgres
• 6 Instances
  • 3 AZ
  • 1 Master
  • 5 Read Replicas
  • failover in less than 30 sec
• requirements:
  • writes: 4 / 6
  • reads: 3 / 6
• enpoints
  • writer
  • reader
    • connection LB
• Aurora
  • Serverless
  • Cross Region (?)
  • Global
• select global reader / writer endpoint for access

AWS ElastiCache

• Redis
• memcached
• write / read scaling
• multi-AZ
• caching Pattern
  • Lazy Loading / Cache-Aside / Lazy Population

Route 53

• A: hostname => IPv4
• AAAA: hostname => IPv6
• CNAME: hostname to hostname
• Alias: hostname to AWS resource
• nslookup / dig

• TTL: konfigurierbar in Route53

• Routing Policies:
  • simple
  • weighted
  • latency
  • Failover
  • Geo Location
• health checks
  • unhealthy after X checks failed (default 3)
  • heathy after X checks apssed (default 3)
  • Default Interval 30s (up to 10s for more $)
  • ~15 health checkers running in parrallel

VPC

• only in 1 regions
• Subnets
  • Tied to AZ (one? really!?)
  • private
  • public
• CIDR https://en.wikipedia.org/wiki/Classless_Inter-Domain_Routing
• default VPC: only 1 public subnet
• Internet gateway (internet access VPC)
• NAT-Gateway / NAT-Instances
  • deployed in public subnet
  • acces to internet from private subnet
• NACL
  • Network Access Control List
  • Firewall in/out traffic subnet
• VPC Flow Logs!
  • can be sent to S3 / Cloud Watch
• VPC peering
  • IP ranges should not overlap!
  • not transitive!
• VPC Endpoints (Gateway/Interface)
  • private access to AWS services
• Site to Site VPN vs Direct Connect

S3

• Buckets are defined at the region level

• 5GB => multipart uploads

• Versioning possible
• S3 Encryption
  • SSE-S3: AWS Keys (AES-256)
    • Header “x-amz-server-side-encryption”: “AES256”
  • SSE-KMS: KMS Keys
    • key access control & audit
    • Header “x-amz-server-side-encryption”: “aws:kms”
    • uses KMS Customer Master KEy (CMK)
  • SSE-C: Own Keys
    • Amazon does not store keys
    • https must be used
    • encryption key in header
  • Client-Side Encryption
    • eg amazon S3 encryption client
• S3 Security
  • User based / IAM
  • Resource Based:
    • Bucket Policies
    • Object ACL - finer grain (not relevant)
    • Bucket ACL - less common (not relevant)

CLI & Stuff

aws configure
~/.aws/config
~/.aws/credentials

• Generator: https://awspolicygen.s3.amazonaws.com/policygen.html
• Simulator: https://policysim.aws.amazon.com/

• Test if command would succeed

    --dry-run


• STS: Security Token Service (temporary, limited-priviledge credentials)
  • decode authorization message https://docs.aws.amazon.com/cli/latest/reference/sts/decode-authorization-message.html

  • sts get-session-token for MFA

    aws sts decode-authorization-message …

• AWS EC2 Instance Metadata http://169.254.169.254/latest/meta-data
• AWS Limits
  • API Rate limits
  • Service Quotas
  • exponential backoff!
• Credentials Provider Chain
  • CLI
    • CMD Opts
    • Env variables
    • ~/.aws/credentials
    • ~/.aws/config
    • Container Credentials
    • Instance Profile credentials
  • SDK
    • Env Variables
    • Java System Properties
    • ~/.aws/credentials
    • Container Credentials
    • Instance Profile credentials
• Credentials Best practices
  • never in code!
  • in AWS: Roles
  • outside: env variables / named profiles
• SigV4
  • sign request to AWS for authentication
  • HTTP Header or Query String

Advanced S3 & Athena

• enable MFA Delete (for permanent delete of object)
  • enable through cli
  • with root account!
• S3 Access Logs
  • Logging Bucket
    • never monitor the logging bucket
      • => logging loop / expotential loop
    • AWS Console: Enable Server Access Logging
      • Acl updated automatically
    • Analyse with Anthena
• S3 Replication
  • CRR (Cross Region Replication)
    • e.g. lower latency access
    • desaster recovery
    • or replication across accounts
  • SRR (Same Region Replication)
    • e.g. log aggregation
    • or live replication prod => test
  • IAM has to be setup
  • Only new objects are replicated
  • deletes markers are by default not replicated (but can be!)
  • permanent deletes are never replrecated
  • not transitive
  • AWS Console: Management => create replication rule
  • replication including version ID
  • pre-signed URLs
    • SDK or CLI
    • default 3600 seconds (–expires-in)
    • permissions inherited from issuing user
    • aws s3 presign s3://mybucket/myobject --region my-region
  • Storage Classes
    • S3 Standard
      • Sustain 2 concurrenct facility failures
      • Standard-Stuff
    • IA
      • 128kb min charge / object
      • 30 days min
      • Retrieval fee / GB
      • S3 Standard-IA (Infrequent Access)
        • Rapid Access when needed
        • Less Available Lower Cost
        • for: Desaster recovery, backups
      • S3 One Zone-IA
        • Single AZ
        • Less Available Lower Cost then Standard-IA
        • for: secondary data backups, recreatable data
    • S3 Intelligent Tiering
      • 30 days min
      • fee for auto-tiering
      • aut. moves objects between 2 access tiers
      • Resilient against single-AZ events
    • Glacier
      • archive
      • low cost
      • retained > 10 years, min. 90 days
      • Retrieval fee / GB
      • 40 kb min charge / object
      • each archive (file) up to 40 GB
      • archives are stored in vaults
      • Retrieval Options
        • Expedited 1-5 minutes
        • Standard 3-5 hours
        • Bulk 5-12 hours
    • Glacier Deep Archive
      • Retrieval Options
        • Standard 12 hours
        • Bulk 48 hours
      • min. 180 days
    • S3 Reduced Redundancy Storege (deprecated)
  • Licecycle rules
    • move to other storage class (transitions actions) / delete (expiration action) after a while
    • can be configured for certain prefix
  • S3 limitations per prefix
  • KMS Limits per Key
  • S3 Byte-Range fetches can be used to optimize performance
  • S3 Select & Glacier Select
    • SQL filtering for rows & columns
      • e.g. CSV filtering
  • S3 Event Notifications
    • Select by event type and object name
    • targets: SNS, SQS, Lambda Functions
  • Athena
    • Serverkess service to perform analytics against S3
    • via SQL / JDBC / ODBC
    • CSV, JSON etc
    • BI / Analytics / Reporting
  • S3 Oject Lock & Glacier Vault Lock

AWS CloudFront

• CDN
• DDoS protection with Shield
• Origins:
  • S3 Bucket (edge caching, Security: Origin Access Identity, ingress for uploas)
  • Custom Origin (http)
• Blacklist / Whitelist per Country (3rd party IP database)
• CloudFront Signed URL / Cookies
  • Expiration, IP Randes, Trusted signers (AWS Accounts)
  • Validity:
    • shared content => minutes
    • private content => years?
  • signed URL: individual files
  • signed cookie: multiple files

ECS / ECR

• config file (via user data) to specify ECS cluster (/etc/ecs/ecs.config : ECS_CLUSTER)
• Use correct AMI!!
• Make Sure ECS agent is running
• ECS Task definition:
  • JSON how to run docker image (Port bidning, image etc) => analog deployment.yml
  • can have an IAM Role (/etc/ecs/ecs.config : ECS_ENABLE_TASK_IAM_ROLE)
• ECS Service (analog kubernetes deployment)
  • ensures instance count
• ECS Load Balancer
  • Dynamic Load Balancer
• ECR
  • CLI v1: exectue output / env variables
  • CLI v2: pipe password
• Fargate: Serverless Container Execution
• ECS IAM Deep Dive
  • EC2 Instance Profile (Role!)
    • used by ECS agent
    • API calls to ECS service
    • container logs => cloud watch
  • ECS Task Role (per container)
• ECS Auto Scaling
  • Types
    • Target Tracking
    • Step Scaling
    • Scheduled Scalind
  • Cluster Capacity Providers
  • nochmal genauer anschauen! => ausprobieren?

AWS Elastic Beanstalk

• Deploy applications
• Pay for only underlying Services
• Manages
  • Instance config & OS
  • Deployment strategy
• Arch models:
  • Single Instance
  • ELB + ASG
  • ASG
• Components
  • App
  • App Version
  • Env Name
• Promote & Rollback Versions

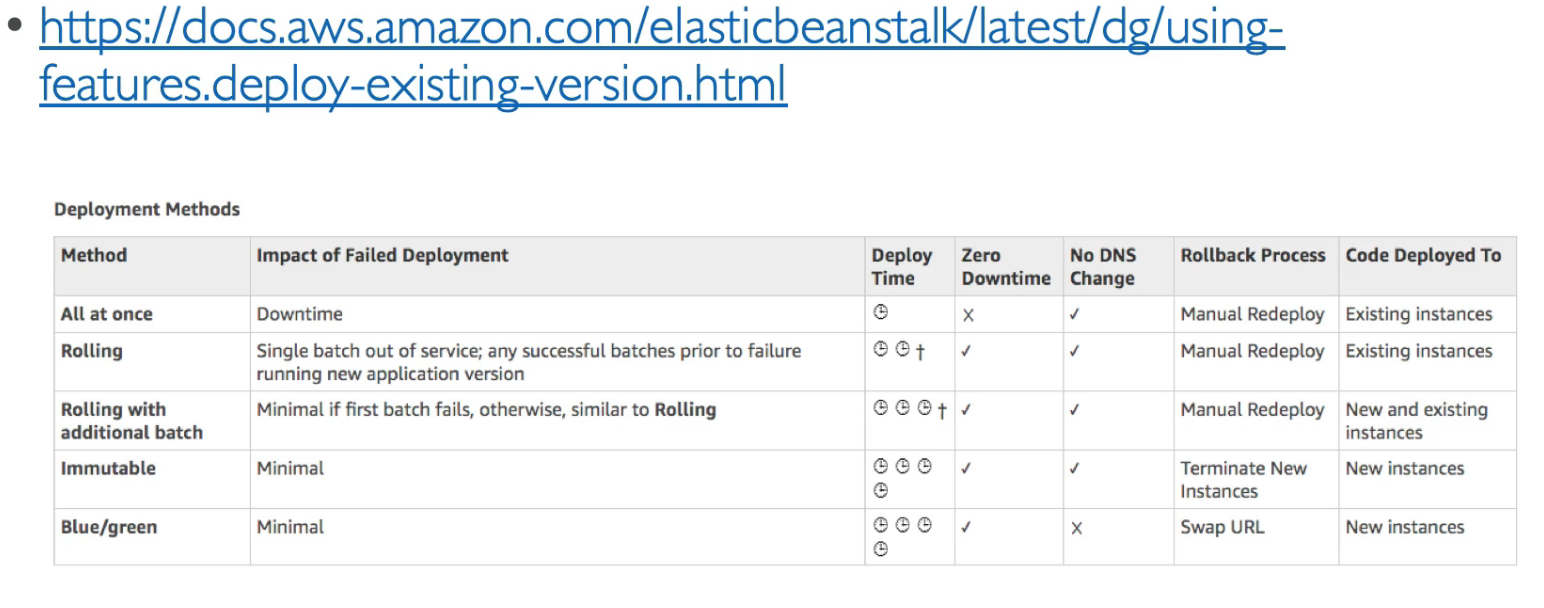

• Deployment Options
  • All at once (fast, downtime)
  • Rolling (with bucket size)
  • Rolling with additional batches (with bucket size, extra cost)
  • Imutable (new ASG, most cost, slow, easy rollback)
• blue/green via environments (more or less manual)
•
